LIGHTNING THUNDER 2.0 charger 7.2kw 32A 1-Phase Smart App Type 2 Power Plug

Sale!
€ 975,00 € 725,00

Product Specification

  • charging power 7.4 kW
  • Main connection Phase 1, 32 Amps
  • Charging cable length Standard 8 meters
  • Plug type Type 2
  • Use Unlock by means of RFID card (total 2 included)
  • Charge status information with APP (Andriod only)
  • Information 4.3 inch Touch Sreen
  • User manual English
  • LED Lighting Status
  • Subscription No, no monthly costs
  • Mounting Steel mounting plate for wall and pole + cable hook
  • Dimensions 32 x 20 x 10 cm (h x w x d)
  • Weight 6 KG
  • Housing material Polycarbonate
  • Degree of protection IP54

The smart charge model is also equipped with:

⦁ Adjustable load balancing so you can use your available power connection smartly
⦁ Adjustable how many amps you want to charge and therefore suitable for the standard 25 amps connection(requires a Home manage system).
⦁ Remotely controllable and readable by means of an APP (Android only)

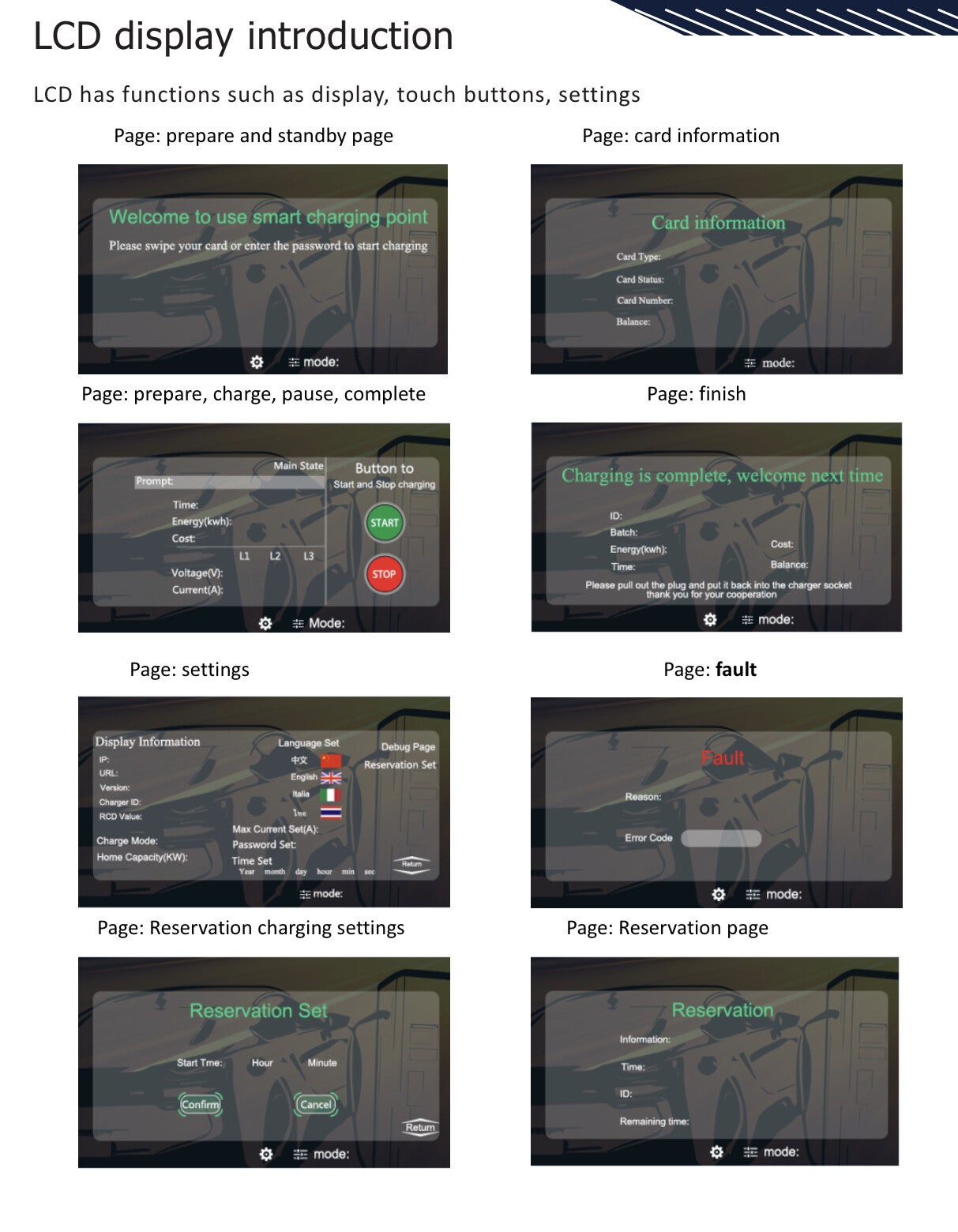

⦁ Information screen to directly read the most necessary information

This model includes encryption. This means that you must unlock the charging station before a charging session can be started. This prevents unwanted use of your own charging station. 2 cards are supplied as standard. This function can also be turned off in the APP.



How to Use

A. How to start charging 1. Make sure the charger is well connected with the power. 2. Use the Type 1/Type 2 plug to connect the charging station with the EV. B. How to stop charging 1. Disconnect the plug from the EV when the charging is finished. 2. You can stop charging by pressing the Emergency Button (the red button on the side of the charger) in case of an emergency. C. How to know the charging status 1. You can monitor the charging process in real time by LED screen. 2. The screen shows real-time voltage, current, charging time, temperature and so on.



Packing list

1. Charging station wallbox*1 2. Charging station manual*1 3. With hanging plate*2 4. Nut and screw*10
